SAP Knowledge Base Article - Public

3429072 - The Result of Scanning Barcode of Production Order is Incomplete.

Symptom

You use external scanner to scan barcode of production order ID, but the result is incomplete.

Environment

SAP Business ByDesign

Reproducing the Issue

  1. Go to work center Production Control.
  2. Access view Production Orders.
  3. Search production order, for example, 12345, click Preview - Preview.
  4. In the pop-up window, there is a barcode under production order ID on each page.
  5. Use any UCC/EAN 128 (GSI 128) barcode scanner to decode the barcode in the window, the result is 1234.

Cause

This is not a bug but about how the template is set up. In Business ByDesign, we are currently using 128SSCC barcode format by default which is visible in the form, and at the same time we have hidden the barcode format 128B.

Resolution

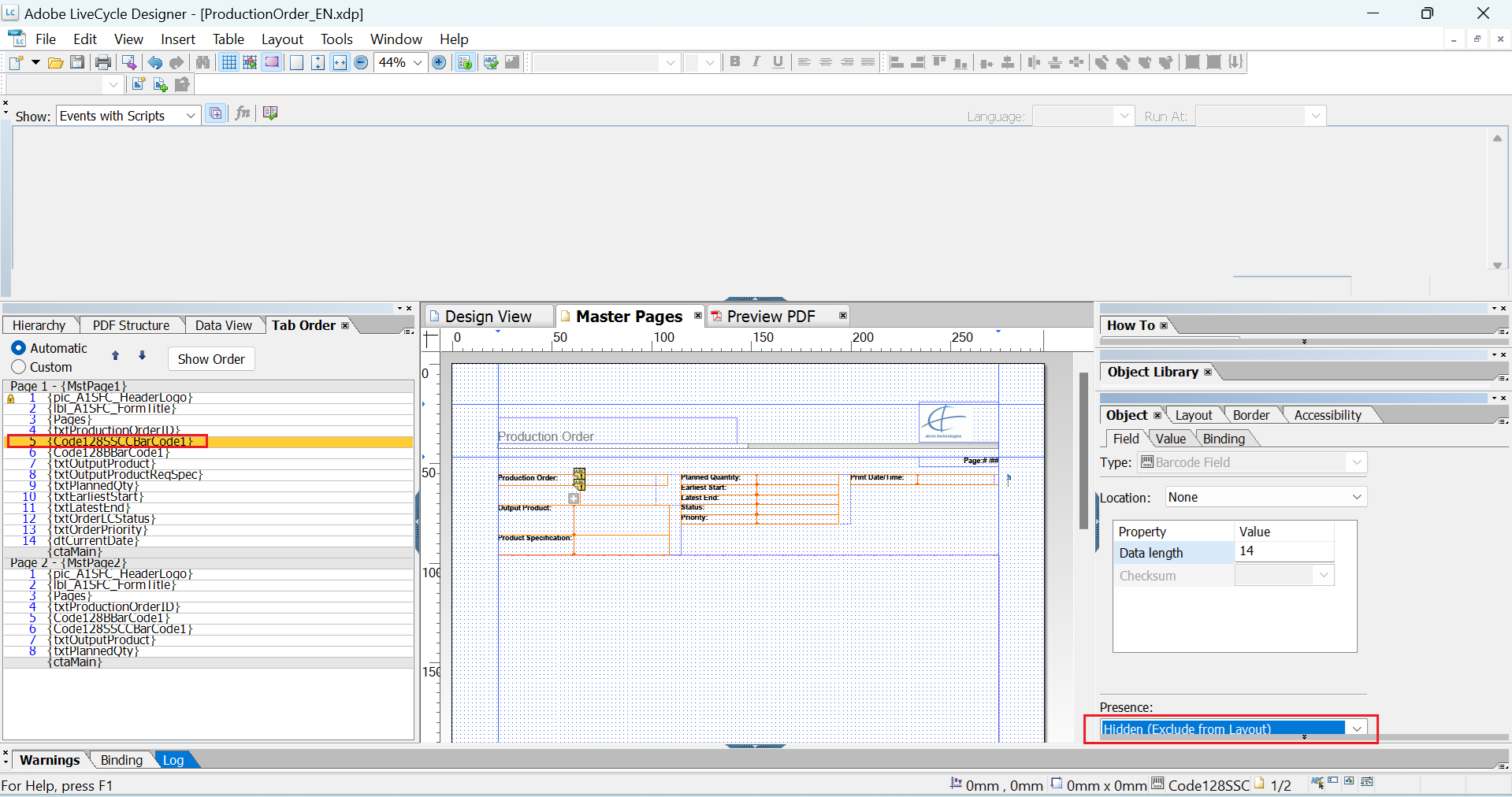

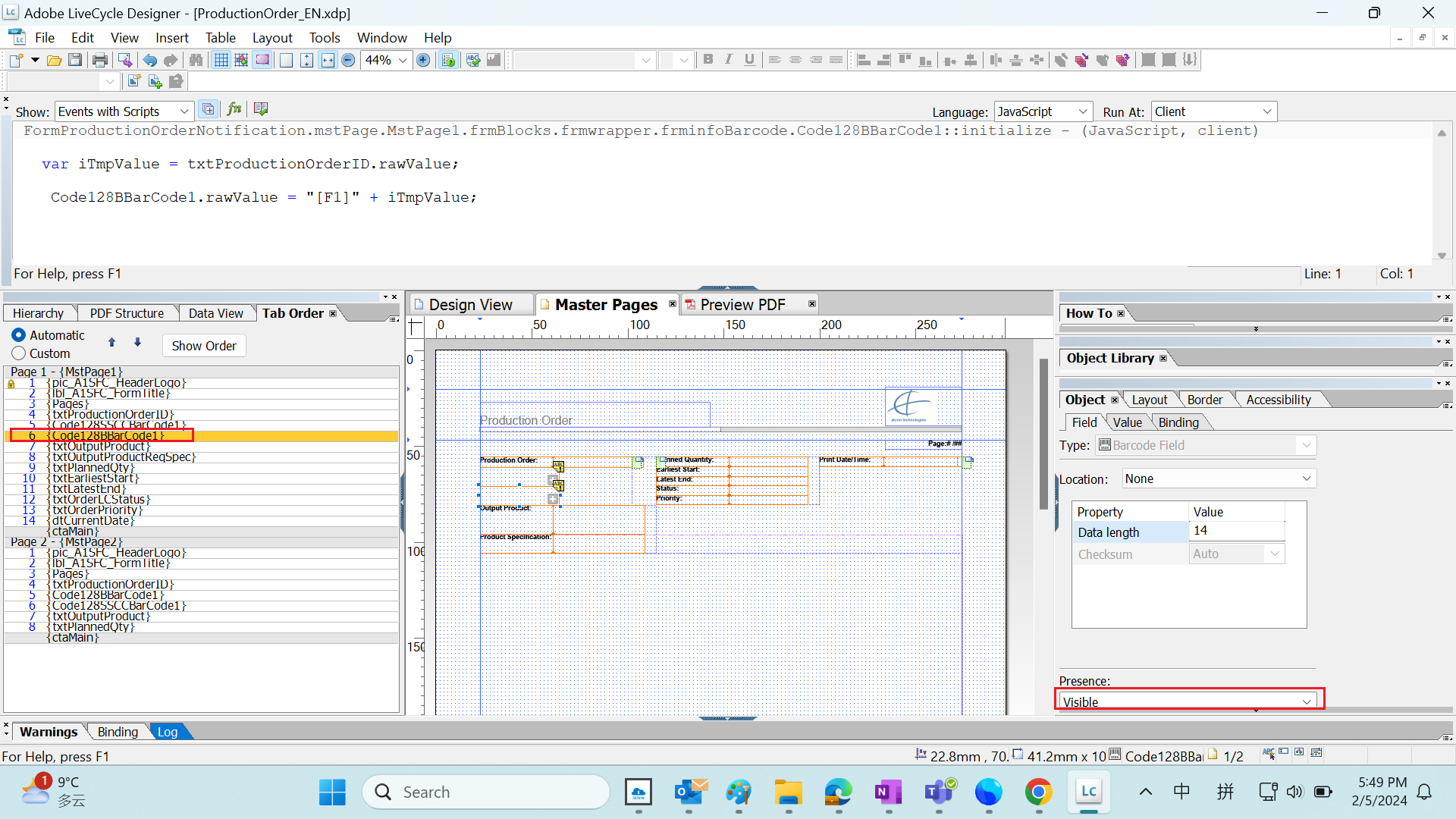

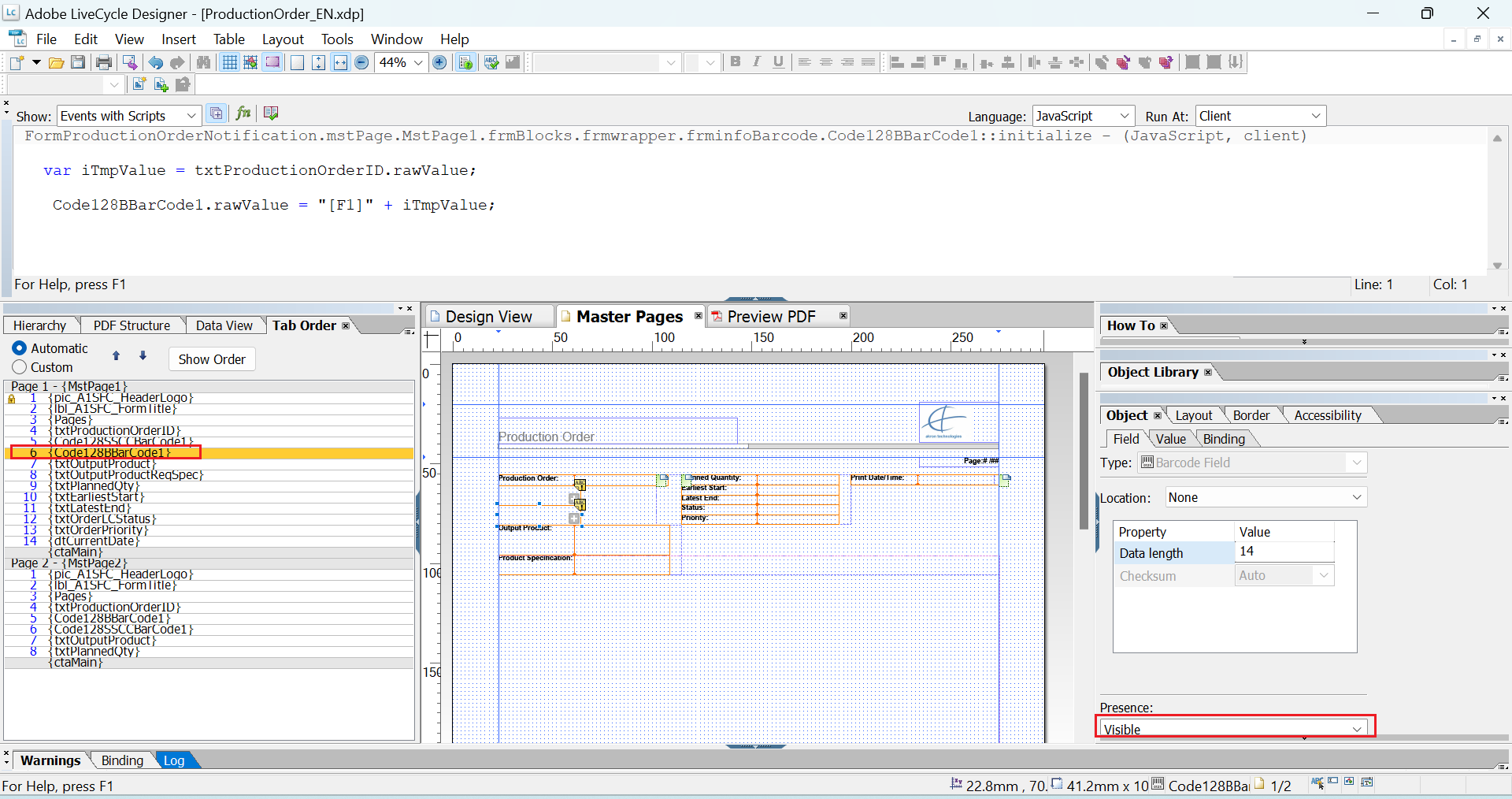

Please download the standard form template, open it in Adobe LiveCycle Designer, make 128SSCC barcode hidden and make 128B barcode visible, and then upload the updated template into system.

Keywords

Production Order, Barcode, Scanner, ID, UCC/EAN 128, 128SSCC, 128B , KBA , AP-PE-ORD , Production Order , Problem

Product

SAP Business ByDesign 2311
