SAP Knowledge Base Article - Public

3435630 - How to change order of total in chart in Optimized Design Experience

Symptom

How to change order of total in chart in SAP Analytics Cloud in Optimized Design Experience (ODE)?

Environment

  • SAP Analytics Cloud Enterprise 1.0 (SAC)

Reproducing the Issue

  1. Create an Optimized Design Experience story.
  2. Add a “Bar/Column” Chart.
  3. In the Builder, select a dimension; select a measure.
  4. Click the "three period" button of the dimension, check "Show Totals".
  5. The total of the measure is displayed as the last one under the measure value in chart.

Resolution

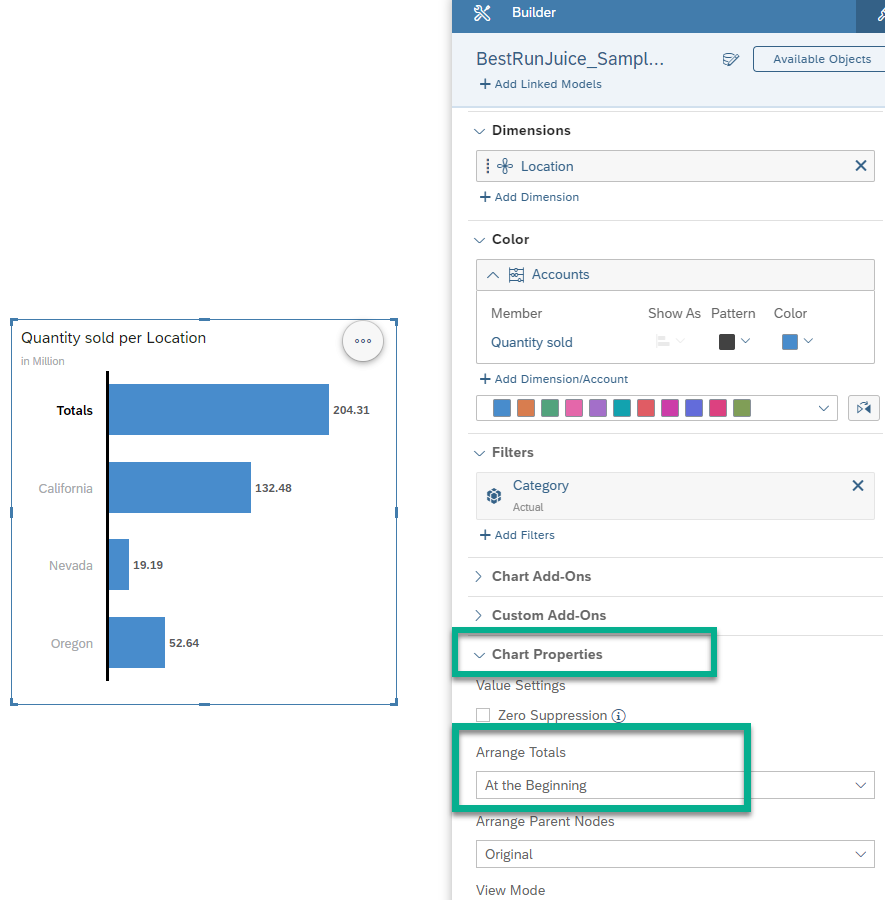

  1. In the Builder of the chart, expand Chart Properties.
  2. Arrange Totals, select At the Beginning.
  3. One limitation:
    If the data source of the chart is Live BW mode, then refer to 3392718 - Cannot arrange Totals at the bottom of a chart in SAP Analytics Cloud (SAC)
    .

See Also

Chart Builder Panel in Optimized Design Experience

Keywords

KBA , LOD-ANA-DES , Story Design & Visualizations , Problem

Product

SAP Analytics Cloud 1.0
