3453943 - Error "Name or password is incorrect RFC_LOGON_FAILURE" in S/4HANA On-Premise Connection - SAP Datasphere

This KBA applies to SAP Datasphere connections to ABAP-based On-Premise systems (e.g., S/4HANA, ECC, or BW) via SAP Cloud Connector.

The following error occurs for feature data flow and replication flow when validating connection in SAP Datasphere.

Connection "<connection_name>" couldn’t be established.
- Data flows can’t be used because of errors in the connection.
- Replication flows can’t be used because of errors in the connection.

Data Flows: Cause: ABAP connector(Axino) ABAP connection check FAILED: request failed: rc=1, msg="Message: Name or password is incorrect (repeat logon)Code: RFC_LOGON_FAILURE"
Please refer to SAP Note 2849542 for more information. Code:1103002

Replication Flows: Cause: ABAP connector(Axino) ABAP connection check FAILED: request failed: rc=1, msg="Message: Name or password is incorrect (repeat logon)Code: RFC_LOGON_FAILURE"
Please refer to SAP Note 2849542 for more information. Code:1103002

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

SAP Datasphere

Validate the connection

Cause 1:

User and password are incorrect.

Cause 2:

The connection contains real-time replication, in this case the password is not updated in remote source. It gets updated only when connection is paused.

Solution 1:

Verify the user and password.

Solution 2:

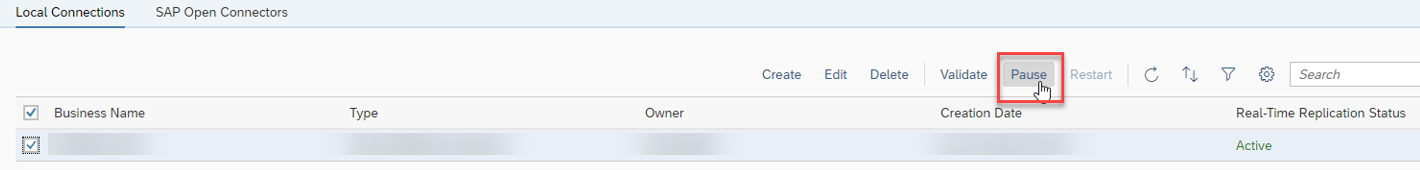

1. First pause the Real-Time Replication Status

2. Then edit the connection, input user and password.
3. Save and validate the connection.
4. Re-start the Real-Time Replication.

Edit a Connection | SAP Help Portal
