3456850 - Pre-analysis Cloud Connector related issues when creating connection in Datasphere

Symptom

Pre-analysis Cloud Connector related issues when creating connection in Datasphere.

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Environment

SAP Datasphere

Resolution

  1. Is Subaccount identical to the Subaccount used in SCC ?

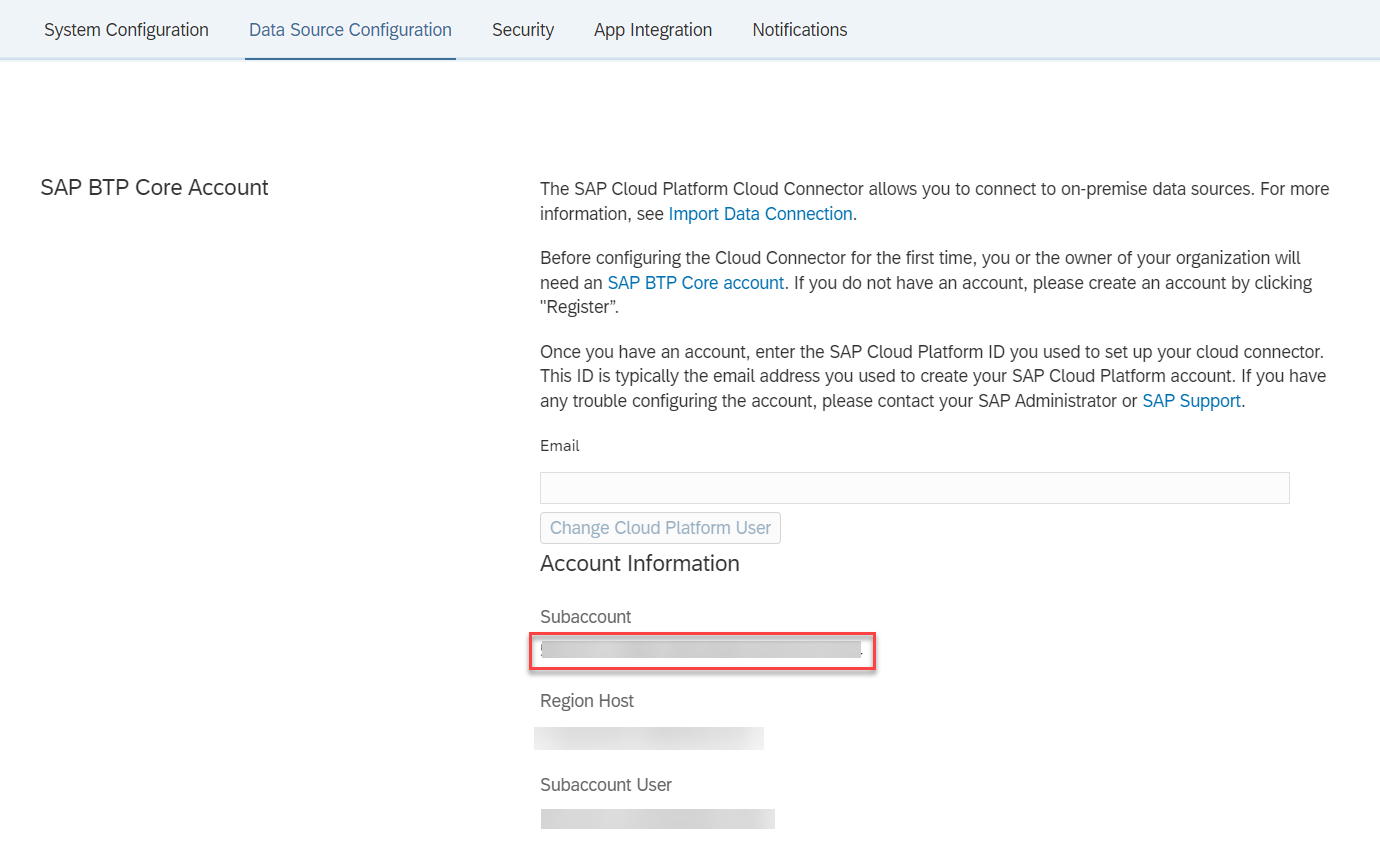

    In SAP Datasphere side: System -> Administration -> Data Source Configuration -> SAP BTP Core Account

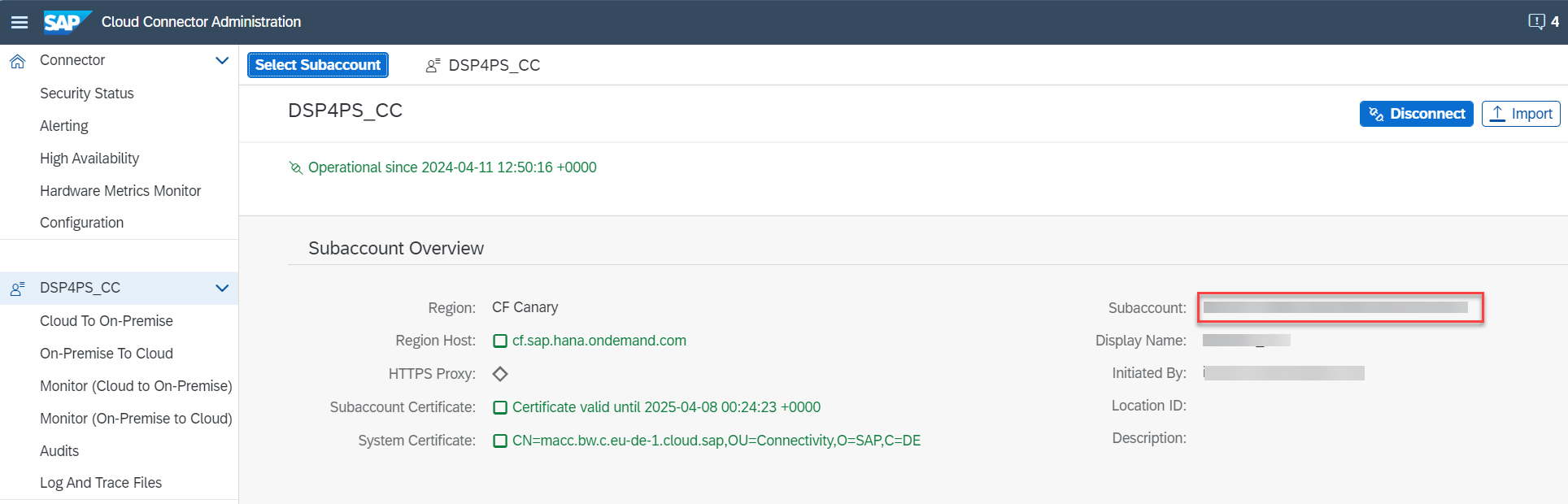

    In SAP Cloud Connector side, check Subaccount.

    They should be same.

  2. Is Location ID identical to the Location ID in SCC?

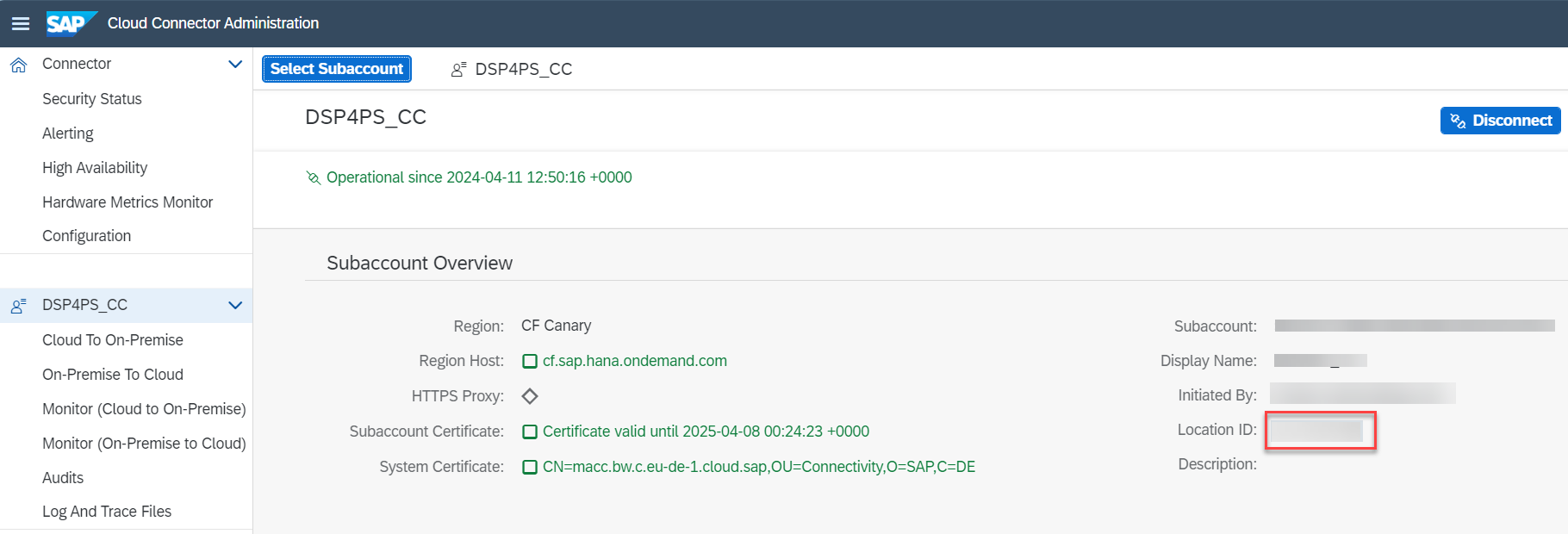

    Check Location ID in SCC:

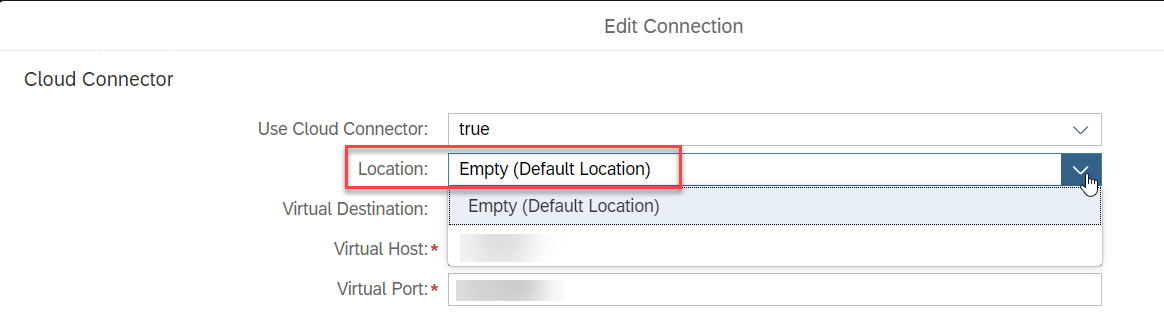

    In Datasphere, Connection -> Edit connection -> Cloud Connector part. They should be same.

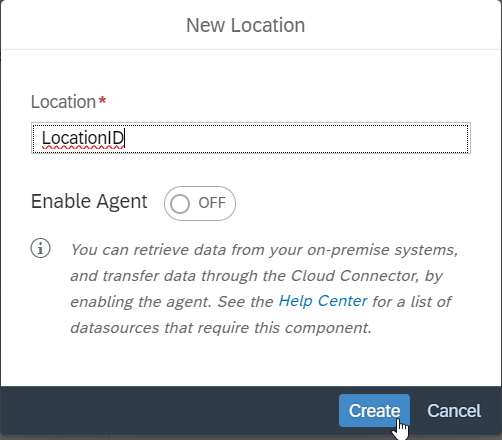

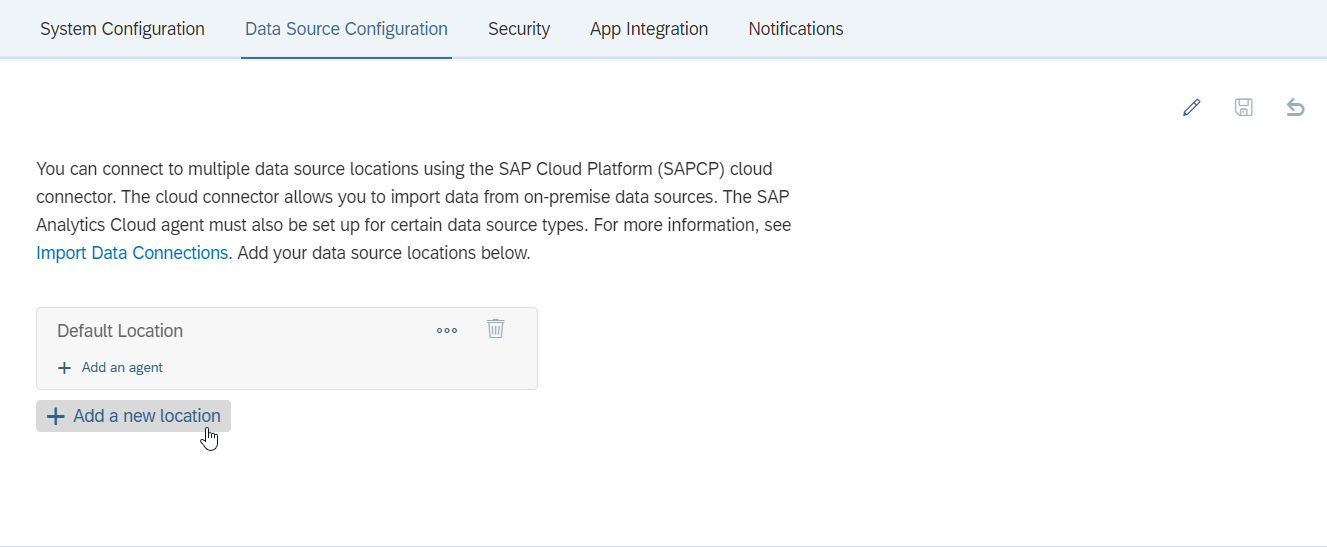

    If you cannot find the Location ID in dropdown menu, please add the Location ID in System -> Administration -> Data Source Configuration

    PS: If there are more than 1 Cloud Connector involved, then you need to set the Location ID.

  3. Are outbound IPs of Datasphere allowlisted in your network?

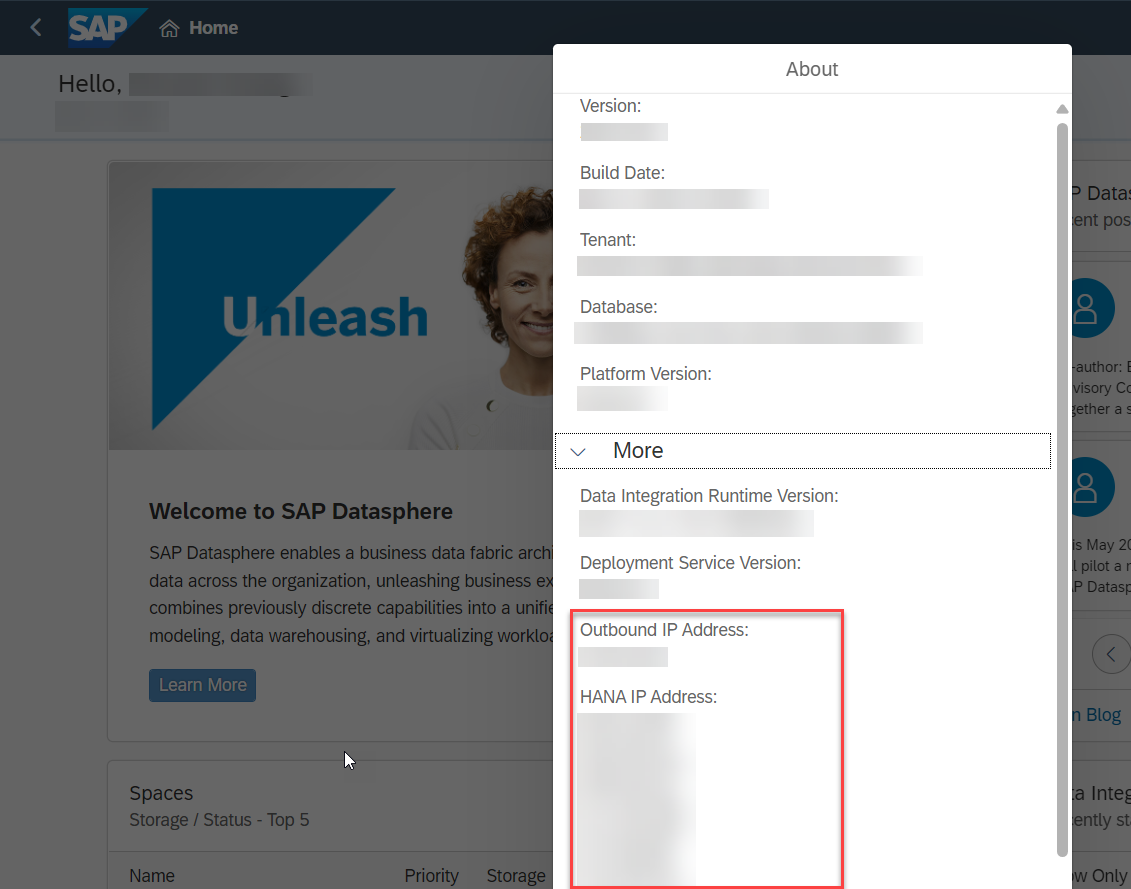

    Datasphere -> System -> About -> More. Check "Outbound IP Address" and "HANA IP Address". These IP addresses need to be allowlisted in your network (server where SCC installed).

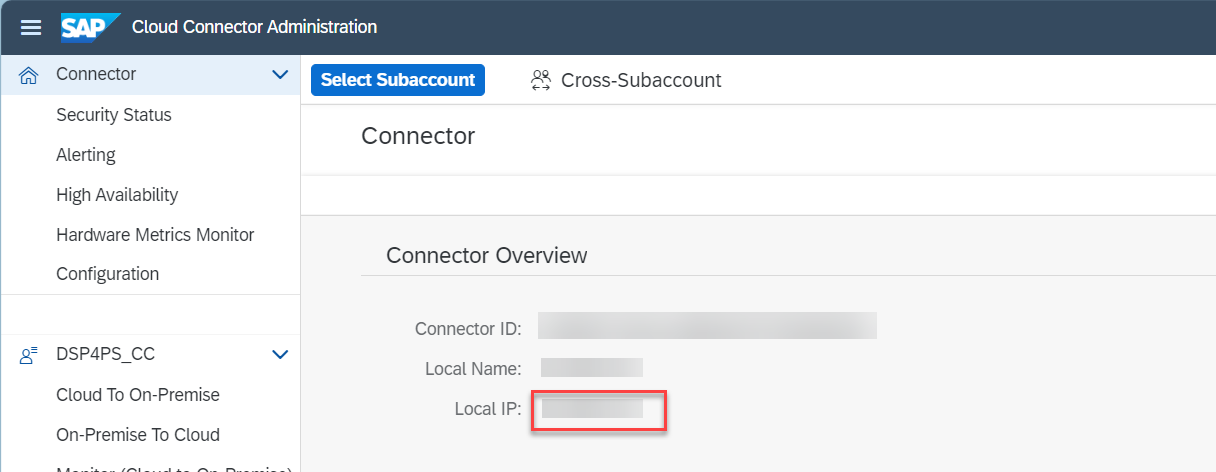

    Is SCC IP allowlisted in Datasphere?

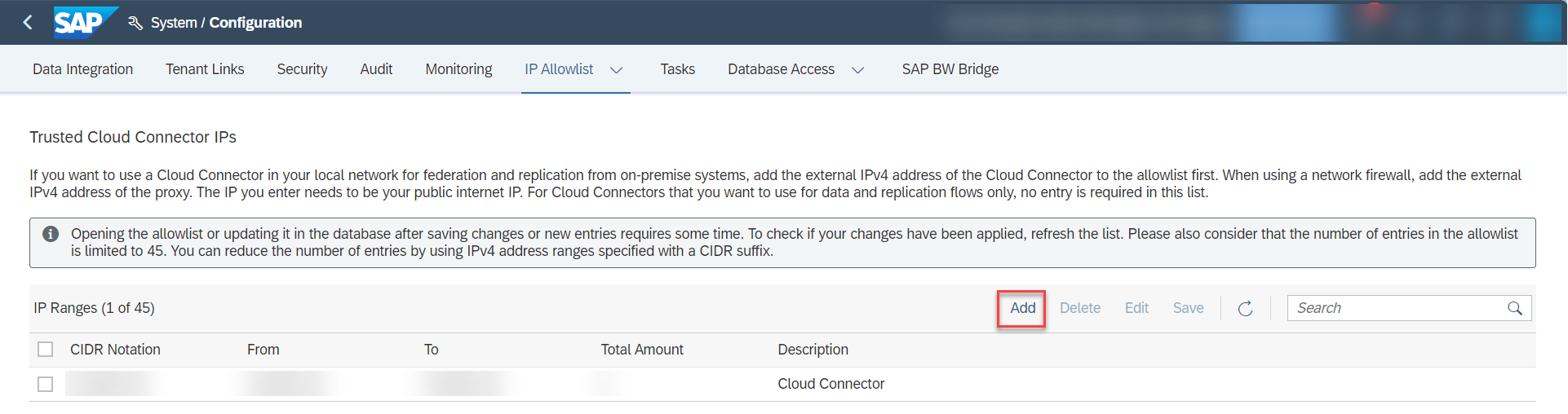

    This IP address needs to be added in Datasphere Allowlist. (System -> Configuration -> IP Allowlist -> Trusted Cloud Connector IPs)

  4. Are mappings in SCC correct?

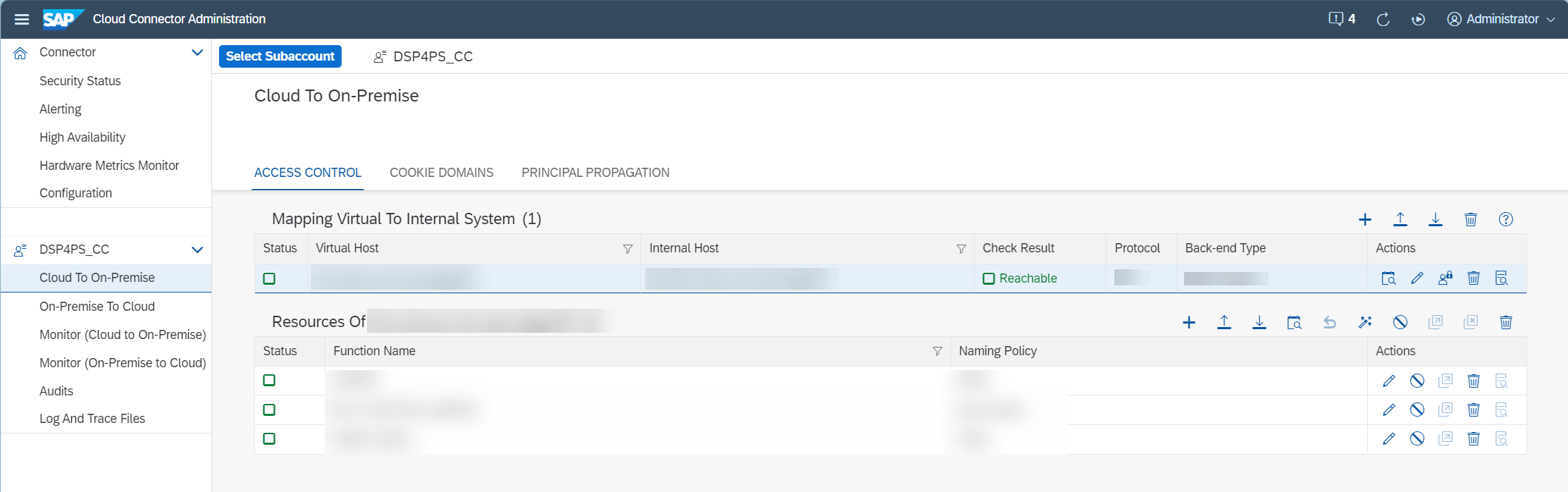

    Check mapping in SCC.

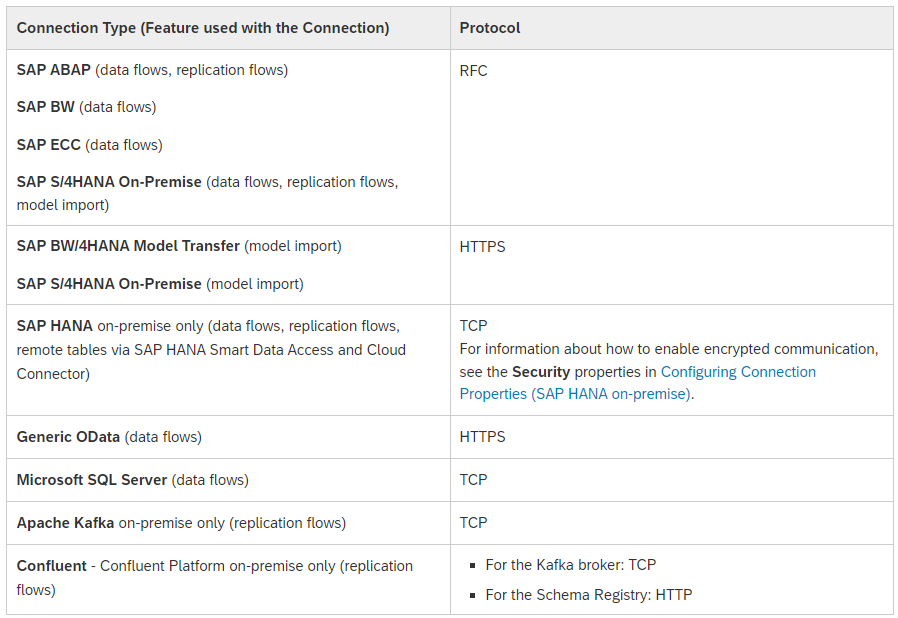

    • Is protocol correct?

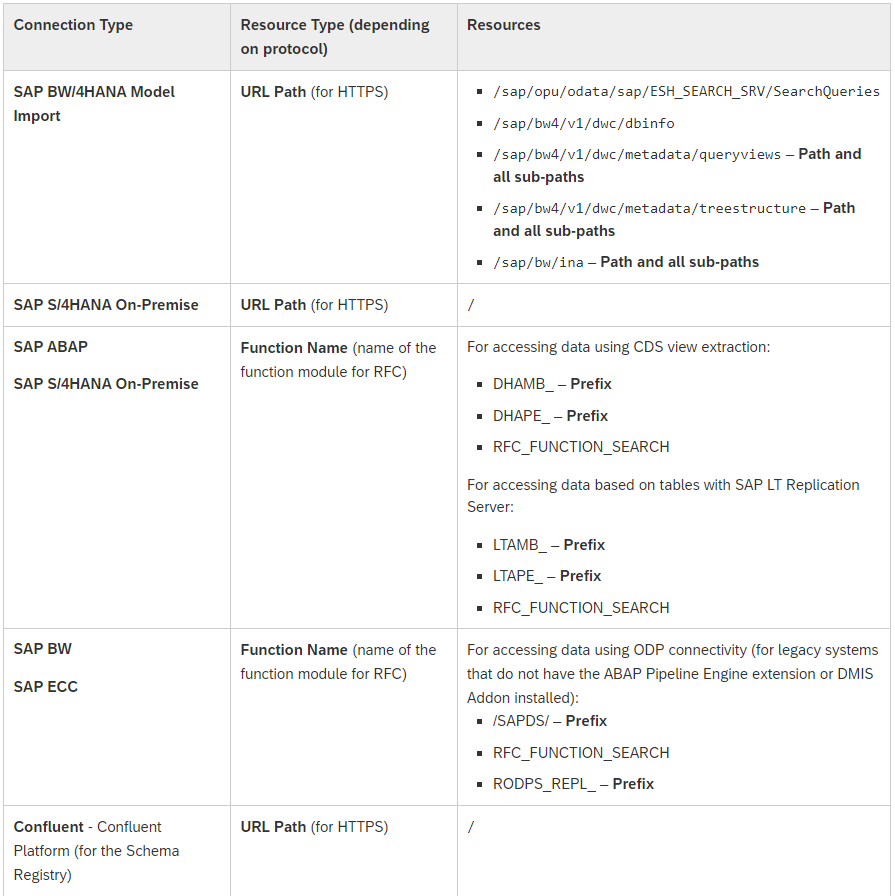

    • Are required resources added?
  5. Are virtual host and port identical to ones in SCC?

    In SCC side, for example, it connects ABAP system with RFC protocol and using connection type "Without load balancing (application server and instance number)".

    In Datasphere side, it needs to be identical to ones in SCC.

For more information see KBA 3369433 - How to troubleshoot Cloud Connector related issues when creating connection in Datasphere.
