3462180 - SF Adapter in CPI: Special Characters in $filter value throw HTTP 400

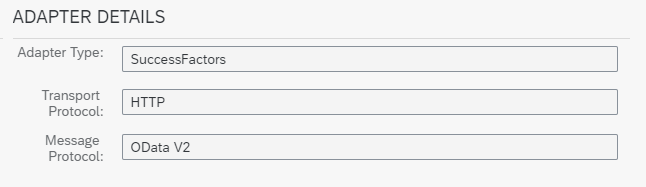

In CPI you are using SuccessFactors Adapter to perform an OData API request to your SuccessFactors system:

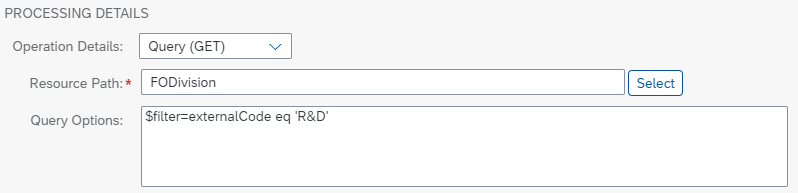

In the OData API request you use $filter operation and filter for a value which contains a special character:

• Example: odata/v2/FODivision?$filter=externalCode eq 'R&D'

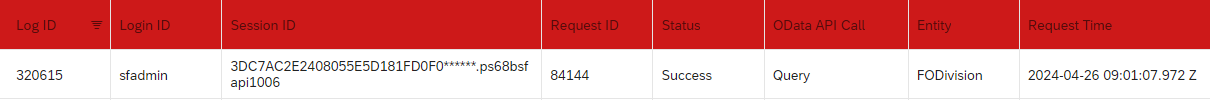

The process fails with error: com.sap.gateway.core.ip.component.odata.exception.OsciException: : 400 : HTTP/1.1

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

• SAP Cloud Platform Integration
  • SuccessFactors Adapter
• SAP SuccessFactors HCM
  • OData API

The special characters used in the $filter operation are not properly encoded which results in a malformed API request reaching SuccessFactors:

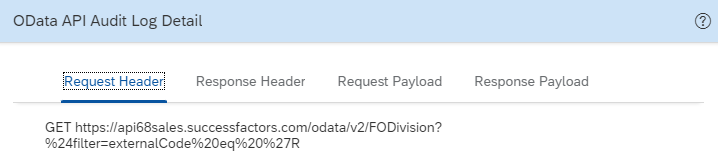

• URL Encoded: https://api68sales.successfactors.com/odata/v2/FODivision?%24filter=externalCode%20eq%20%27R
• URL Decoded: https://api68sales.successfactors.com/odata/v2/FODivision?$filter=externalCode eq 'R

The request is not properly formed due to the lack of encoding of the special character: &

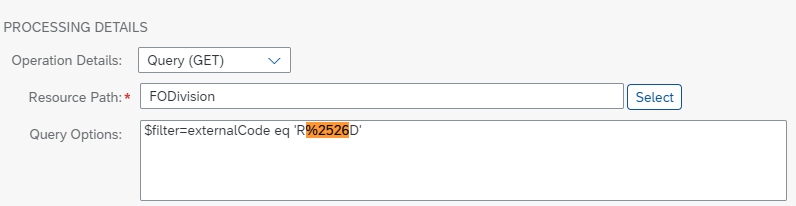

The special character value must be double-encoded in order to be received in correct format:

• & --> %26 --> %2526

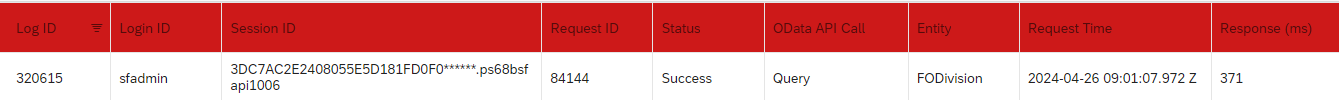

This will result in the correct $filter value being received by SuccessFactors OData API which can then be processed and responded to correctly:

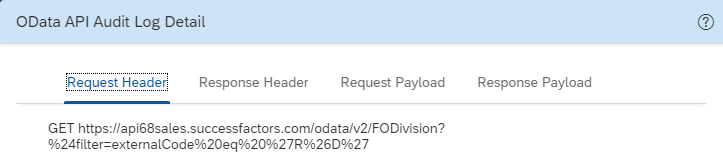

• • URL Encoded: https://api68sales.successfactors.com/odata/v2/FODivision?%24filter=externalCode%20eq%20%27R%26D%27
  • URL Decoded: https://api68sales.successfactors.com/odata/v2/FODivision?$filter=externalCode eq 'R&D'

Similar can be seen with CPI's HTTPS adapter only in that case triple encoding is needed, see here for reference:

• 3131448 - HTTP Receiver adapter discards encoding of special characters in address

KBA , LOD-HCI-PI-CON-OD , OData Adapters , LOD-SF-INT-CPI , Standard SF to 3rd Party CPI (HCI) Content , LOD-SF-INT-ODATA , OData API Framework , How To
