SAP Knowledge Base Article - Public

3471218 - Datasphere - CDS View list in Data Flow and Replication Flow

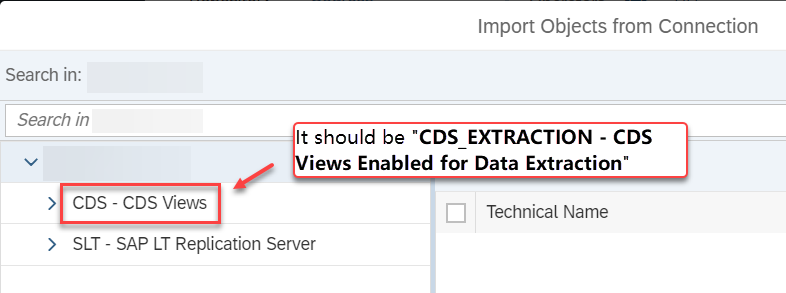

In SAP Datasphere Data Flow or Replication Flow, when trying to use standard CDS view as a source, the root folder is "/CDS" with name "CDS - CDS Views", not "/CDS_EXTRACTION" with name "CDS_EXTRACTION - CDS Views Enabled for Data Extraction". Like below screen-shot:

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."


SAP Datasphere

Reproducing the Issue

  1. In SAP Datasphere, create a new Data Flow or Replication Flow
  2. Try to add standard CDS View as a source according to Data Flow Add a Source | SAP Help Portal or Replication Flow Add a Source | SAP Help Portal.
  3. Find that "CDS - CDS Views" displays as the root folder not "CDS_EXTRACTION - CDS Views Enabled for Data Extraction".


Missing code corrections in source system.


  1. Find the corresponding collective SAP Note in SAP Note 2890171 - SAP Data Intelligence / SAP Datasphere - ABAP Integration according to the source system version. Take source system version SAP S/4HANA 2022 as example.
  2. Implement all SAP Notes which listed in the SAP Note found in first step. For the above example, for SAP S/4HANA 2022, the corresponding SAP Note is 3130827 - SAP Data Intelligence - ABAP Integration - SAP S/4HANA 2022, which means all SAP Notes listed in SAP Note 3130827 should be implemented in source system.

See Also


"/CDS" "/CDS_EXTRACTION" "CDS - CDS Views" "Datasphere" , KBA , DS-DI , Data Integration/Data Builder , CA-DI-IS-ABA , ABAP Integration , How To


SAP Datasphere all versions
