SAP Knowledge Base Article - Public

3474273 - AutoNavi Map is not working as expected

Symptom

The AutoNavi Map doesn't display the locations for the Map View of any OWLs.

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Environment

SAP Cloud for Customer

Reproducing the Issue

  1. Navigate to any work center.
  2. Switch to Map view.
  3. The locations do not show up on the map.

Cause

The AutoNavi Map is not activated with a valid API key and a security key.

Resolution

  1. Open developer tools of the browser.
  2. Reproduce the issue.

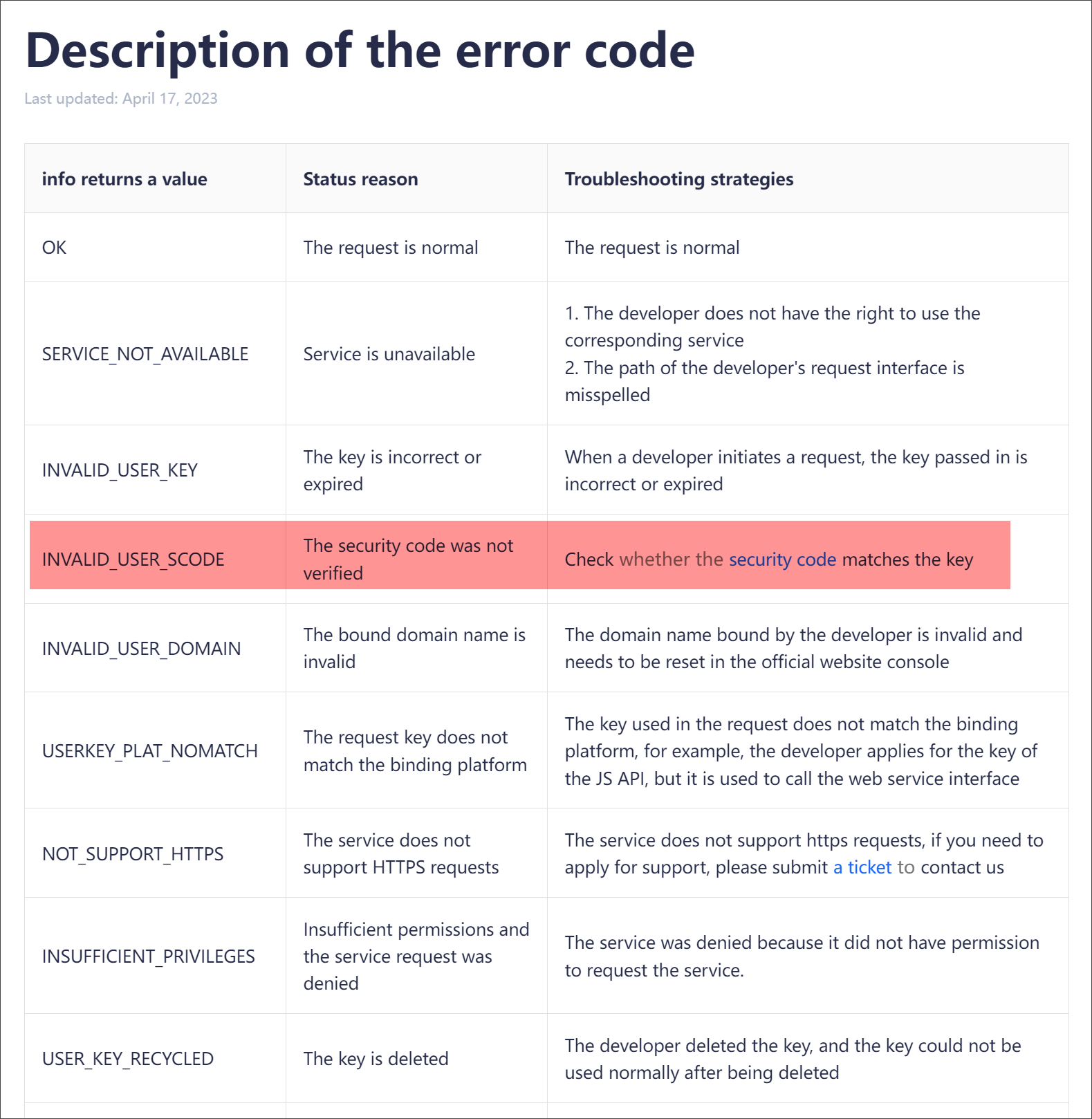

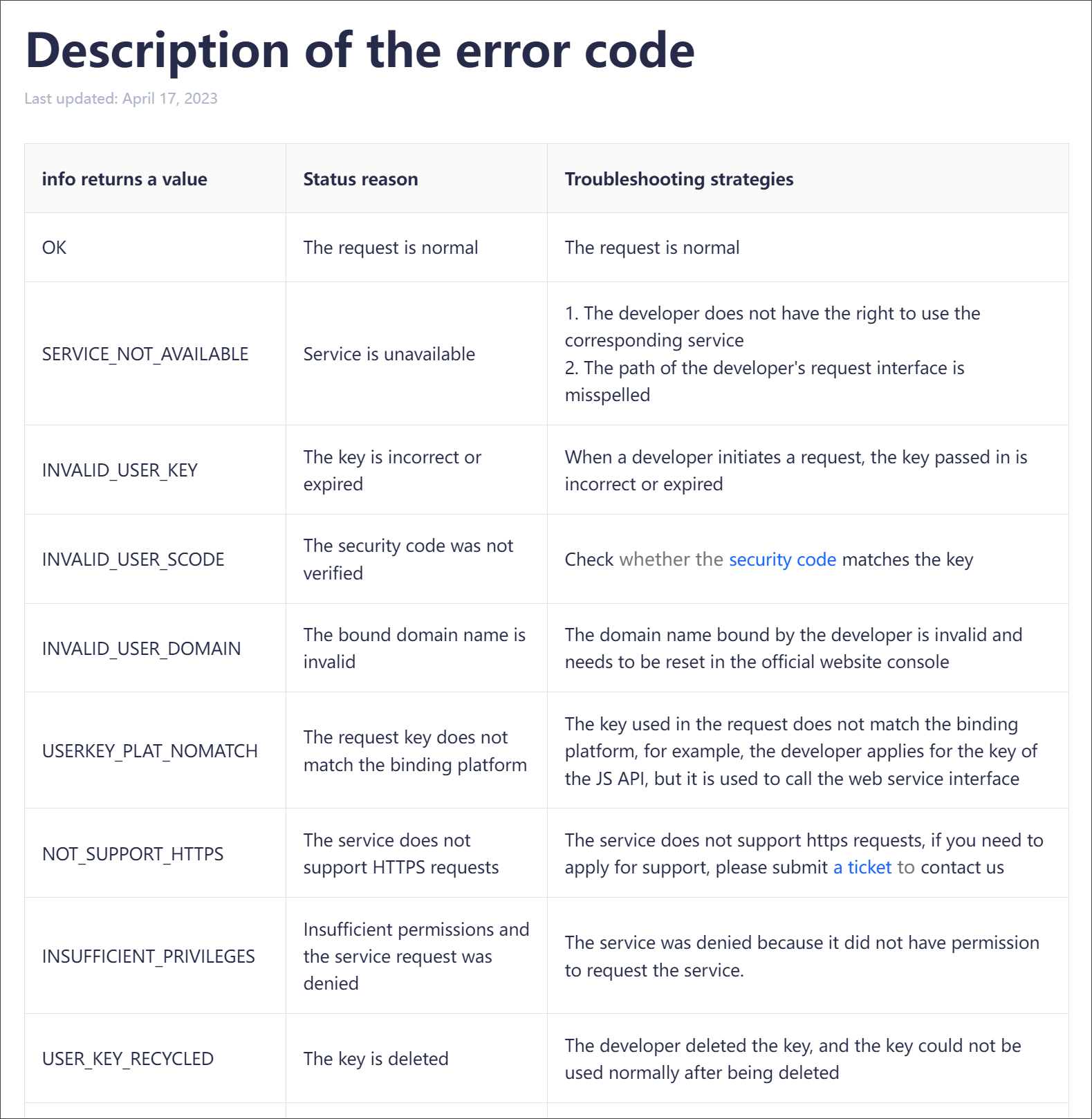

  3. Check whether the error code is INVALID_USER_SCODE in the response payload. Note: If the error code is not INVALID_USER_SCODE, then the KBA will not be of help. However you can still refer to the content here. (FYI: Description of the error code)

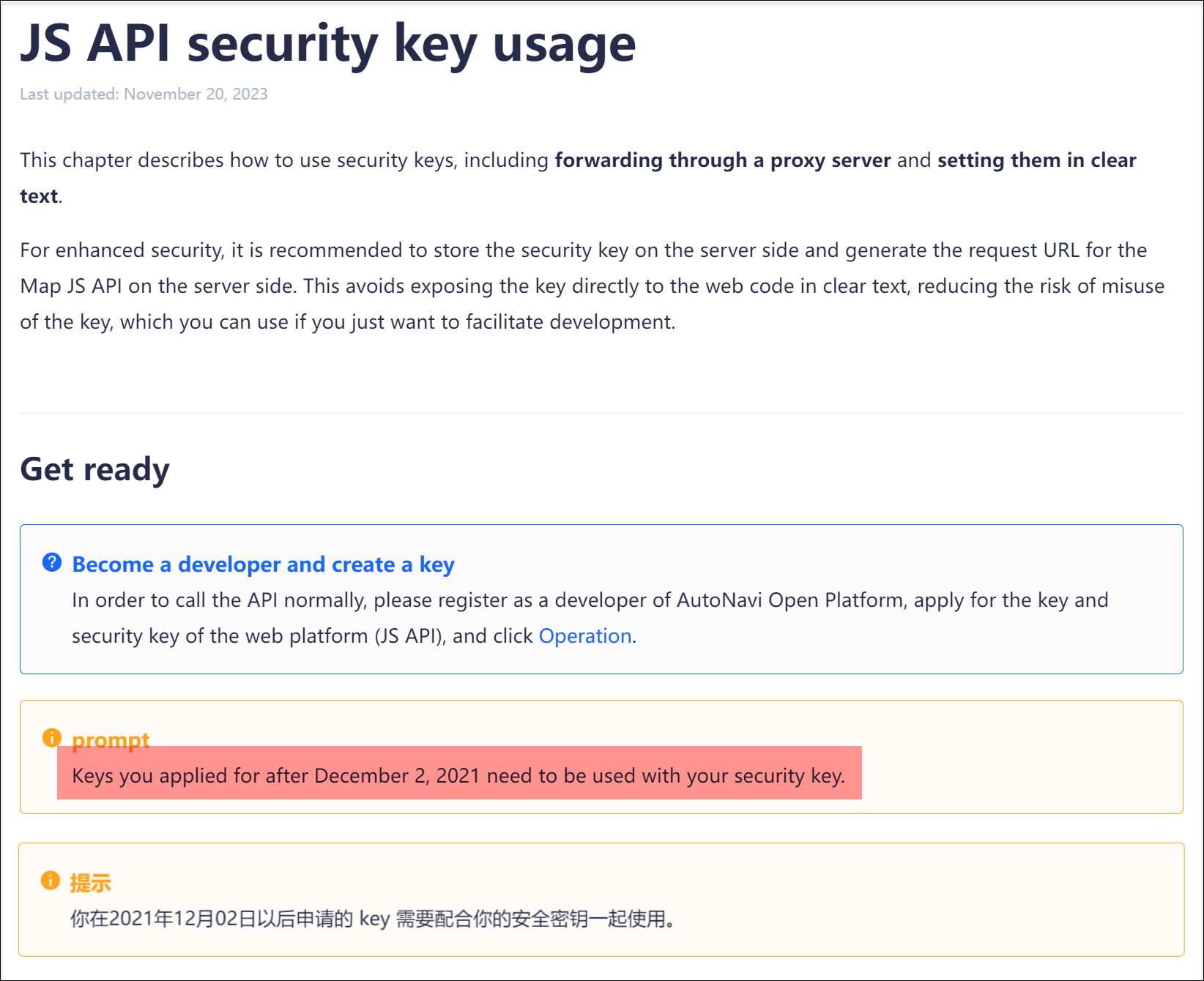

  4. Please be aware that keys applied after December 2, 2021 must be used with a security key, as claimed in the AutoNavi Map Help Doc. Please follow the KBA 3414767 to apply for an API key and activate the AutoNavi Map.

See Also

Keywords

AutoNavi, AutoNavi Maps, AutoNavi Map Mashup, Map View, INVALID_USER_SCODE , KBA , AP-RC-GEN-MSH , Mashups , Problem

Product

SAP Cloud for Customer core applications all versions
