3498129 - Onboarding Custom Tasks UI Template Rule - Onboarding

How to configure conditions in UI rule for custom task

SAP SuccessFactors Onboarding

1. Go to the search field and enter Manage Onboarding and Offboarding Tasks.
2. On the Manage Onboarding and Offboarding Tasks page, select the Task Settings tab.
3. Locate the task that you want to edit, then select the Edit icon.
4. In the Custom MDF Object field, select the MDF object for the custom task from the dropdown menu.
5. Click on F12 to open the network logs.
6. Select Open Template Editor to open the Custom Task Template Editor.

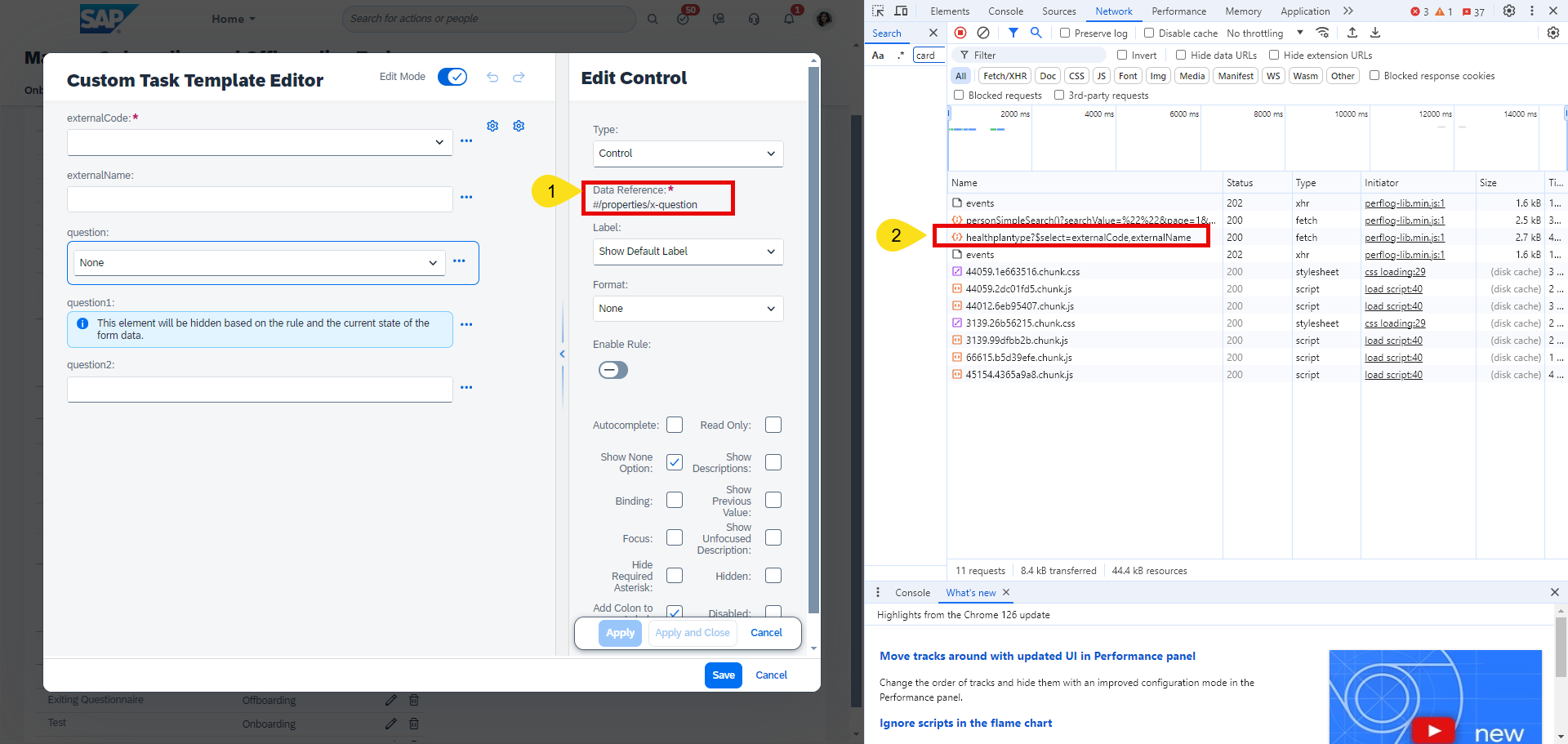

7. Get your scope from the field that is being updated ie #/properties/x-question

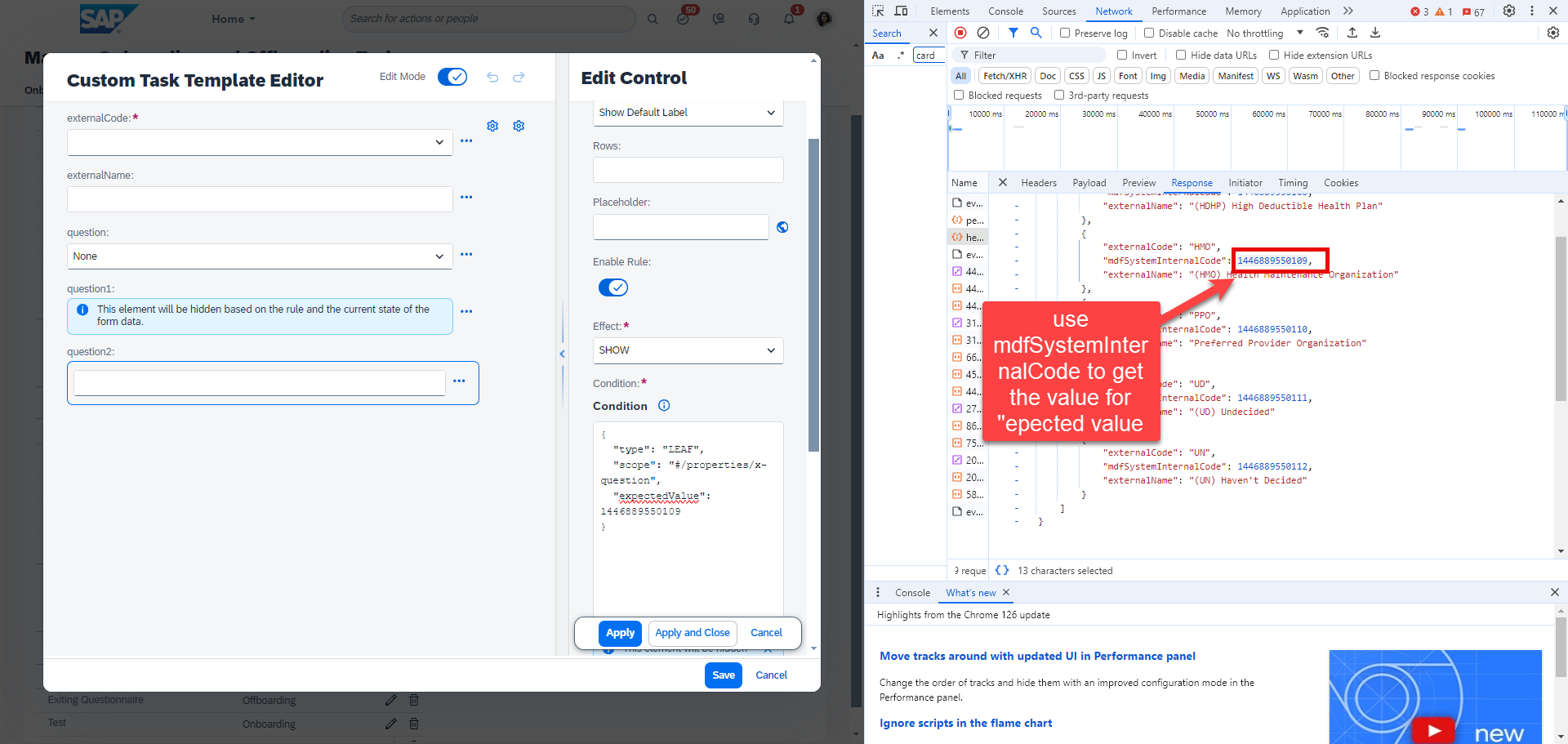

8. In the network logs get the "mdfSystemInternalCode": xxxxxxxxx, from the xxxxxxxx?$select=externalCode,externalName
9. If the field is picklist, in the network logs, get the ''internalId'' = xxxxxxxxx, from the picklistxxxxxxxxx?$select=externalName,externalCode
10.
11. Go to the field you want hide or show and edit control

12. Enter the code below:
    {
      "type": "LEAF",
      "scope": "#/properties/x-xxxxxxx,
      "expectedValue": xxxxxxxxx
    }
13. Apply and close
14. Test
15. Save

Configuring an Attachment Field for Custom Tasks
