3509849 - 'couldn't be established' error in SAP Datasphere when using Generic SFTP connection

Symptom

While setting up the Generic SFTP connection from SAP Datasphere to SFTP server, the following errors appears:

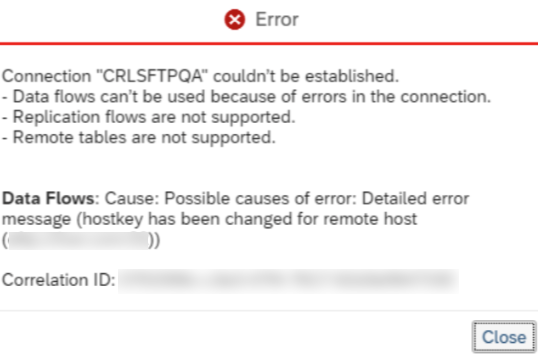

Connection <SFTP NAME> couldn't be established.
- Data flows can't be used because of errors in the connection.
- Replication flows are not supported.
- Remote tables are not supported.
Data Flows: Cause: Possible causes of error: Detailed error message (hostkey has been changed for remote host (<SFTP URL>))

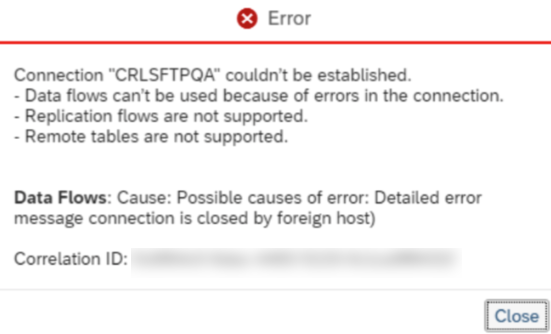

Connection <SFTP NAME> couldn't be established.
- Data flows can't be used because of errors in the connection.
- Replication flows are not supported.
- Remote tables are not supported.
Data Flows: Cause: Possible causes of error: Detailed error
message connection is closed by foreign host)

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Environment

SAP Datasphere
Generic SFTP

Cause

The SFTP hostkey is not set properly in SAP Datasphere.

Resolution

Generate the correct host key via the following steps:

Provide the host public key through a trusted channel. If your Windows 10, Linux, or MacOS machine has a trusted channel, perform the following steps by replacing the following elements with the specified values:

$HOST with the host name value of your connection
$PORT with the port value of your connection

Use the resulting file host_key.pub.txt, in the directory where you run the specified command, as the Host Key for your connection. The specified commands are as follows:

Windows 10: In PowerShell, run the following command:

(ssh-keyscan -p $PORT $HOST 2>$null) -replace '^[^ ]* ','' > host_key.pub.txt
Linux/MacOS: In a unix-compliant shell with both ssh-keyscan and sed commands (both are installed in your system), obtain the key through the following command:

ssh-keyscan -p $PORT $HOST 2>/dev/null | sed "s/^[^ ]* //" > host_key.pub.txt

Keywords

Sftp, ftp, protocol, matching, host, key, hostkey, pem, certificate, how, to generate, server , KBA , DS-DI-CON , Connections , Problem

Product

SAP Datasphere all versions
