3521574 - Profit/Cost Centers Hierarchy filter missing for reports

The 'Hierarchy' filter is missing for Profit Center / Cost Center in reporting apps (e.g. P&L - Actuals, Market Segment - Plan/Actuals...).

 ***Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.***

SAP S/4HANA Cloud Public Edition

Even though the hierarchy was set in "Manage Profit Center Groups" / "Manage Cost Center Groups", it was not replicated.

1. Execute “Set report relevancy” app for set Class 0106 for profit center group and select yes for report relevant and Auto replicate.
2. Schedule “Replicate Runtime Hierarchy (SAP)” for Hierarchy ID “YBPH”.

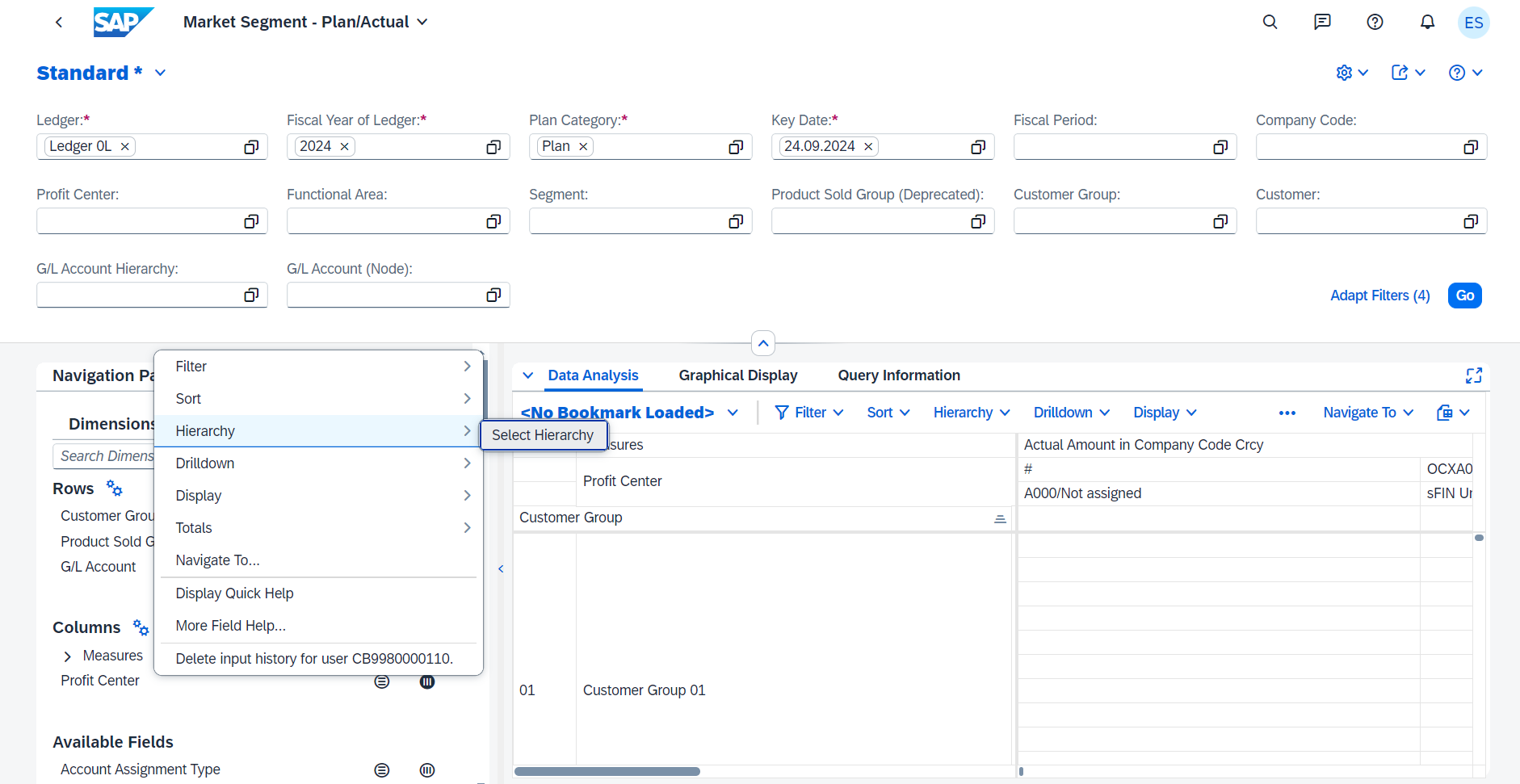

3. Execute the reporting app and right click on profit center. Now Select Hierarchy option is visible to select Hierarchy.

Alternatively, when creating hierarchies from "Manage Global Hierarchies" app, these will be replicated automatically during activation process.

Profit Center Group and Manage Global Hierarchy Fiori App in SAP S/4HANA Cloud

Manage Global Hierarchies

Global Hierarchies

Manage Cost Center Groups

Manage Profit Center Groups

Reporting, market segment, plan, actuals, filter, hierarchy, group, missing. , KBA , CO-OM-2CL , Overhead Cost Controlling (Public Cloud) , CO-FIO-BPC-IS , Reporting , CO-FIO-OM-IS , Reporting , CO-FIO-CCA-IS , Reporting , Problem

SAP S/4HANA Cloud Public Edition all versions ; SAP S/4HANA Cloud all versions
