3521660 - Chart x axis on multiple charts not aligned on a Story in SAP Analytics Cloud (SAC)

Symptom

  • Multiple charts x axis not aligned.
  • Difficult to compare charts data displayed side by side, when the x axis are not drawn from the same level on a Story in SAP Analytics Cloud.

Environment

  • SAP Analytics Clouds 2024.15.11

Reproducing the Issue

  1. In SAP Analytics Cloud, create a Story.
  2. Add multiple Bar Charts, side by side, of the same size.
  3. When viewing the Story, the Chart x axis does not start at the same place, which make it difficult to compare the data between the charts.

Resolution

  • To align multiple chart x axis:

    1. Open the Story, and select a chart that has an adjacent chart.
    2. Select the x axis (the axis changes color when the cursor is in the correct spot).
    3. Move the axis to a new location.

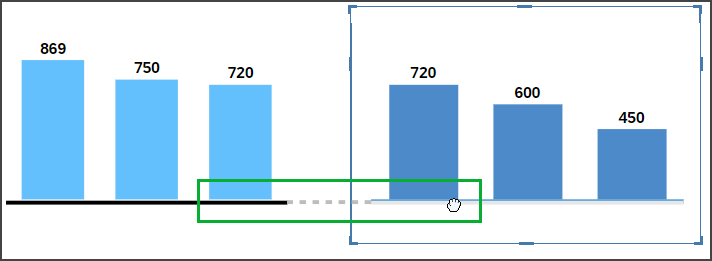

    4. As the axis comes closer to alignment with an adjacent chart axis, a dotted line appears on the chart.
      When you release the cursor, the axis will snap to align with that adjacent chart axis.

Keywords

SAC, chart, axis, alignment , KBA , LOD-ANA-DES , Story Design & Visualizations , Problem
