SAP Knowledge Base Article - Public

3531843 - How to pass more than 5 SAML Role Mappings from Custom IDP?

Symptom

How to pass more than 5 SAML Role Mappings from Custom IDP as mentioned in User Guide Enable a Custom SAML Identity Provider?

Environment

  • SAP Analytics Cloud
  • SAP Datasphere

Resolution

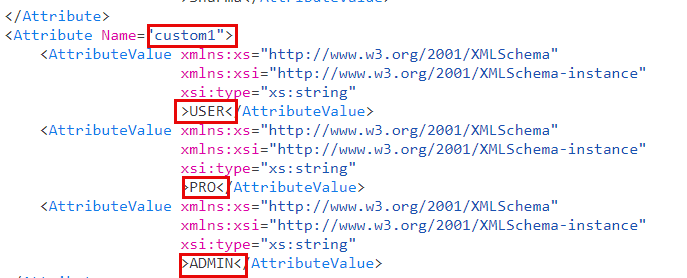

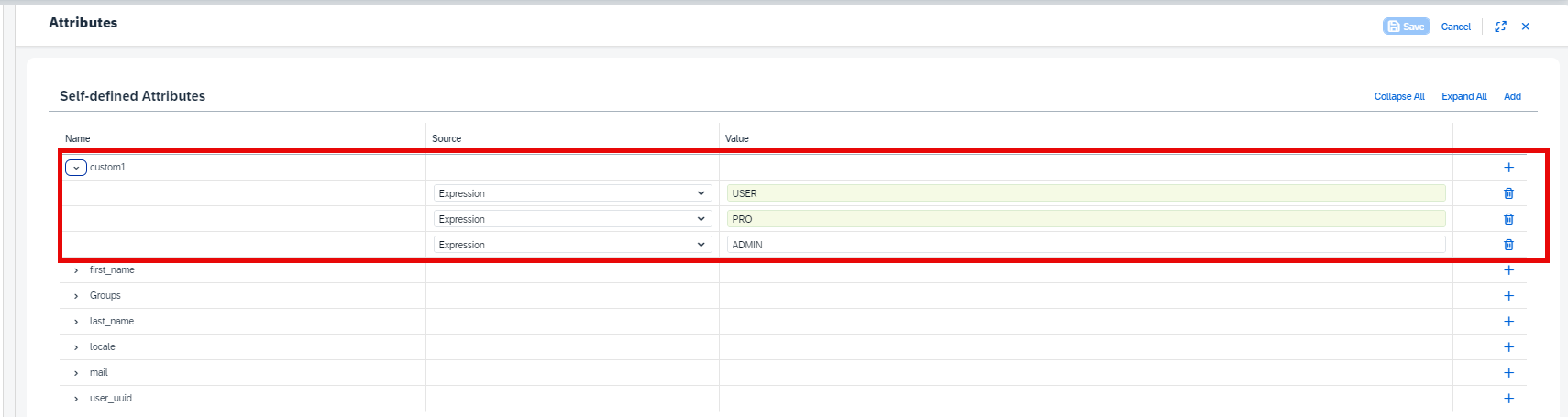

Multiple values could be passed from custom IDP as an array. Below example is from IAS, where multiple values are passed within attribute custom1

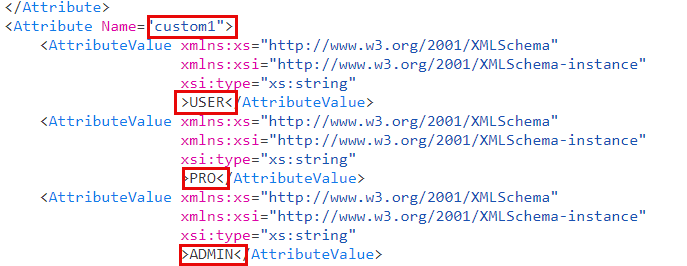

As you can see in the SAML Trace below, all the above values are passed as an array

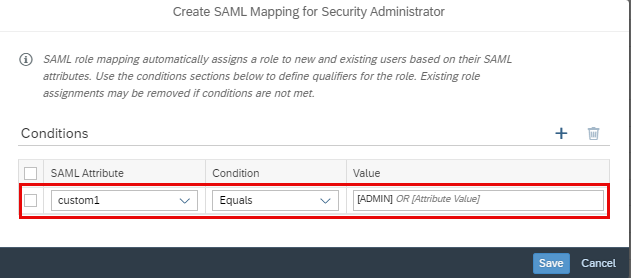

Then within SAC/Datasphere, you can map the above value(s) for role mapping, like below

Keywords

SAML role mapping, SAC, Datasphere, multiple values custom1 , KBA , DS-SEC , Security (Users, Roles) , LOD-ANA-AUT , SAC Authentication / Login , How To

Product

SAP Analytics Cloud 1.0 ; SAP Datasphere 1.0

Attachments

Pasted image.png
