SAP Knowledge Base Article - Public

3540550 - Romania eInvoice error "eDocument cannot be displayed; check implementation of BAdI EDOC_INTERFACE_CONNECTOR method DISPLAY_EDOCUMENT" - SAP S/4HANA Cloud Public Edition

Symptom

Romania eInvoice error when document is displayed/ submitted in eDocument cockpit -

"eDocument cannot be displayed; check implementation of BAdI EDOC_INTERFACE_CONNECTOR method DISPLAY_EDOCUMENT"

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Environment

SAP S/4HANA Cloud Public Edition

Reproducing the Issue

  1. eDocument cockpit application
  2. Select the source document
  3. Display/ Preview XML
  4. Error occurs

Cause

Missing Configuration in SSCUI 105552

Resolution

Maintain the configuration in the SSCUI ID - 105552 'Define Process Communication Through SAP Document Compliance Cloud Services' in the below format-

For this configure the following steps:

1. Go to Configure your Solution
2. Go to  SSCUI "Define Process Communication Through SAP Document Compliance Cloud Services" 105552 and click "Configure"
3. Select the relevant Company code, eDocument Process(ROINV, ROTRREG, etc), Service (select Cloud Edition : PEPPOL EXCHANGE or Country/Region scenarios in the drop down list)

For CBC system, follow the below steps:

  1. Go to Implementation activities
  2. Search for the SSCUI "Define Process Communication Through SAP Document Compliance Cloud Services" 105552 >> SSCUI screen will open
  3. Select the relevant Company code, eDocument Process(ROINV, ROTRREG, etc), Service (select Cloud Edition : PEPPOL EXCHANGE or Country/Region scenarios in the drop down list)

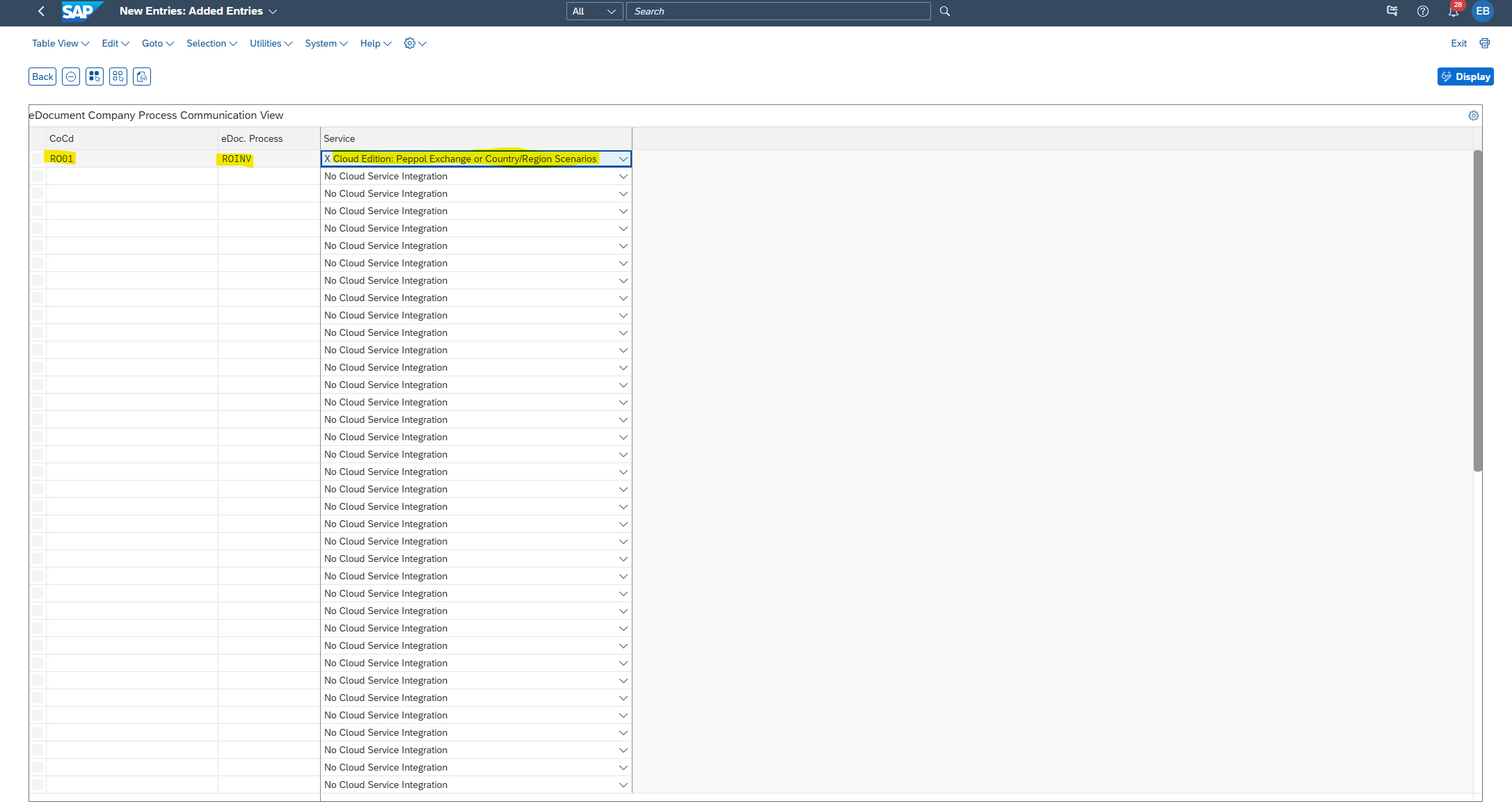

PFA reference screenshot -



See Also

 Defining Process Communication Through Cloud Services (Electronic Documents only) | SAP Help Portal

Keywords

Romania, eDocument, EDOC_COCKPIT, S/4HANA Cloud Public Edition, eInvoice, 105552, eDocument cannot be displayed; check implementation of BAdI EDOC_INTERFACE_CONNECTOR method DISPLAY_EDOCUMENT , XML , KBA , CA-GTF-CSC-EDO-RO , DRC: Electronic Document for Romania , Problem

Product

SAP S/4HANA Cloud Public Edition all versions
