3577220 - Misalignment of data fields in MDF when using Grid Layout

Symptom

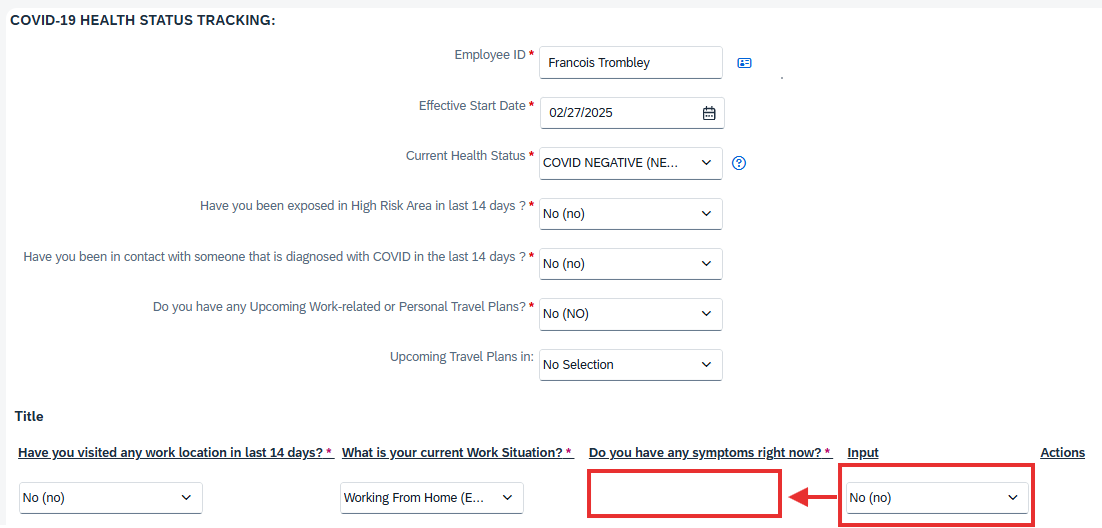

When the "grid" option is selected for "layout" in Manage Configuration UI, the data appears misaligned from the header in the Manage Data: the header is towards the left and the data is on the right.

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Environment

SAP SuccessFactors HCM Suite

Reproducing the Issue

  1. Navigate to Manage Data and search by the object
  2. From the section selected as "grid" in Manage Configuration UI, see there is a misalignment

Cause

This is caused by fields with visibility set to "no" in Manage Configure UI. Hidden fields are not supported by the grid format in UI and may cause misalignment in data.

Resolution

To correct the misalignment, ensure no fields are set to have visibility "no" in Manage Configuration UI. If there are fields that shouldn't appear in the UI, you can set them as "not visible" in the object and/or remove them from the UI.

See Also

  • KBA 2211616 - How to Configure a UI for a Generic Object in Meta Data Framework - [MDF]
  • KBA 2553102 - Employee Central - Manage Configuration UI (MDF object UI)
  • KBA 2804788 - Manage Configuration UI - Changes made to existing MDF Object are not reflecting in the UI

Keywords

MDF UI, Grid format, Data misalignment, SAP SuccessFactors Platform, Manage Data UI, sf , KBA , LOD-SF-MDF-UI , UI Config, Layout & Rules , Problem

Product

SAP SuccessFactors HCM Suite all versions
