3579779 - ABAP Run Time Error in app Create Material Cost Estimate with Quantity Structure

Symptom

ABAP Runtime Error happens when creating material cost estimate.

The details can be checked in app ABAP Runtime Errors:

Short Text

Exception condition "TCKH2_NICHT_KONSISTENT" triggered

Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental.

Environment

SAP S/4HANA Cloud Public Edition

Cause

There is inconsistent maintenance in Cost Component Structure configuration.

Resolution

Open configuration SSCUI 102427 Define Cost Component Structure.

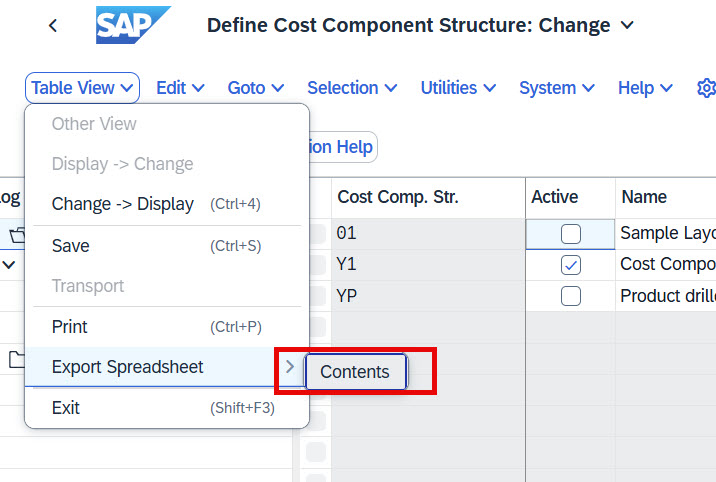

Download the data into Excel according to below screen:

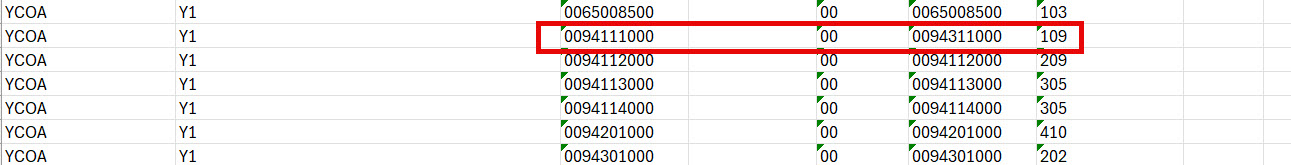

In the download excel, first filter with Y1 cost component structure, then sort with the first Cost Element column. Try to find duplication maintenance records like below red item. Do the needful to remove the inconsistency.

Keywords

TCKH2_NICHT_KONSISTENT, ABAP, Runtime, Error, CK11N, Standard Cost Estimate, OKTZ. , KBA , CO-PC-PCP-2CL , Product Cost Planning (Public Cloud) , Problem

Product

SAP S/4HANA Cloud Public Edition all versions
