3588009 - How to use SXMB_MONI for Talent Hybrid Integration (BizX Add-on) by selecting namespaces

• You are using the Talent Hybrid Integration (BizX Add-on)
• Your middleware id PI/PO
• You would like to know how to filter with the namespaces of Talent Hybrid Integration in Monitor for Processed XML Messages (Transaction SXMB_MONI)

"Image/data in this KBA is from SAP internal systems, sample data, or demo systems. Any resemblance to real data is purely coincidental."

Integration add-on for SAP ERP HCM and SAP SuccessFactors HCM

1. Run transaction SXMB_MONI

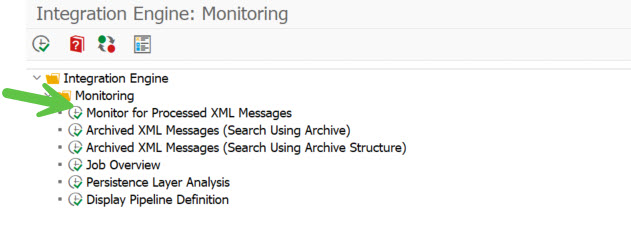

2. Click on 'Monitor for Processing XML Messages

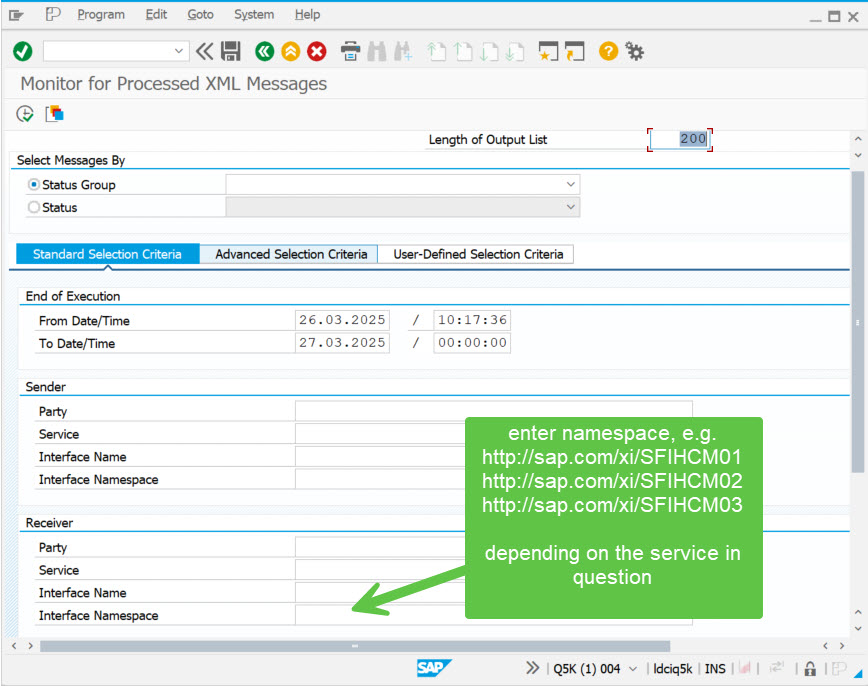

3. In the selection screen in section 'Receiver', you can enter one of the following namespaces depending on which part / service of the Integration you are using:

   - http://sap.com/xi/SFIHCM01
   - http://sap.com/xi/SFIHCM02
   - http://sap.com/xi/SFIHCM03




   There you can find out which part / service uses which namespace:
   Integration Add-On for SAP ERP HCM and SuccessFactors HCM Suite - Integration Using Middleware
   -> Integration Content - Services and Namespaces

   Please note that for example program RH_SFI_TRIGGER_JOB_REQUISITION (for Recruiting) includes the following services = namespaces:

   - SFSFSessionHandlingLoginQueryResult_Out http://sap.com/xi/SFIHCM01
   - SFSFGenericUpsertRequestConfirmation_Out http://sap.com/xi/SFIHCM02
   - SFSFSessionHandlingLogoutQueryResult_Out http://sap.com/xi/SFIHCM01

   So to see the content (XML) of transferred Job Requisitions, select namespace 'http://sap.com/xi/SFIHCM02'.

Example RH_SFI_TRIGGER_JOB_REQUISITION:
To monitor all combined services, in this case Login, GenericUpsert, and Logout, to identify where an error occurs, follow these configuration steps:

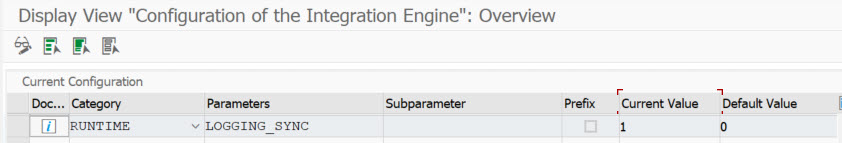

1. Transaction SXMB_ADMIN
2. Integration Engine Configuration
3. Change Configuration
4. Enter the following records
   Category: RUNTIME
   Parameters: LOGGING_SYNC
   Current Value: 1
   Default Value: 0




PA-SFI-TM, SXMB_MONI, PI/O, monitor, interface, namespace, http://sap.com/xi/SFIHCM01, http://sap.com/xi/SFIHCM02, http://sap.com/xi/SFIHCM03, receiver   , KBA , PA-SFI-TM , Integration with SuccessFactors BizX Talent Management , BC-XI-IS-IEN , Integration Engine , How To

integration add-on for SAP ERP HCM and SAP SuccessFactors HCM all versions
